micro:bit Python User Guide

Interface Overview

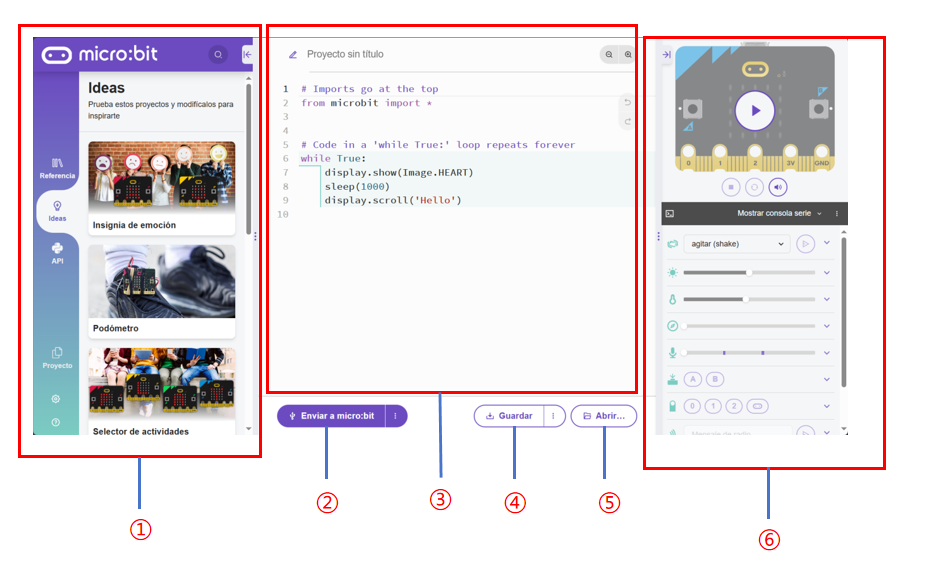

Click the link micro:bit Python Editor to enter the online editor. When entering for the first time, the interface looks like this:

No.

Name

Function

①

Function Panel

Project management

②

Send Code

Send scripts to the connected micro:bit

③

Code Editor

Edit user code

④

Save

Save the project as a .hex file to your computer

⑤

Open

Open a local file

⑥

Status Display

Show the current status of the micro:bit

Language Switching

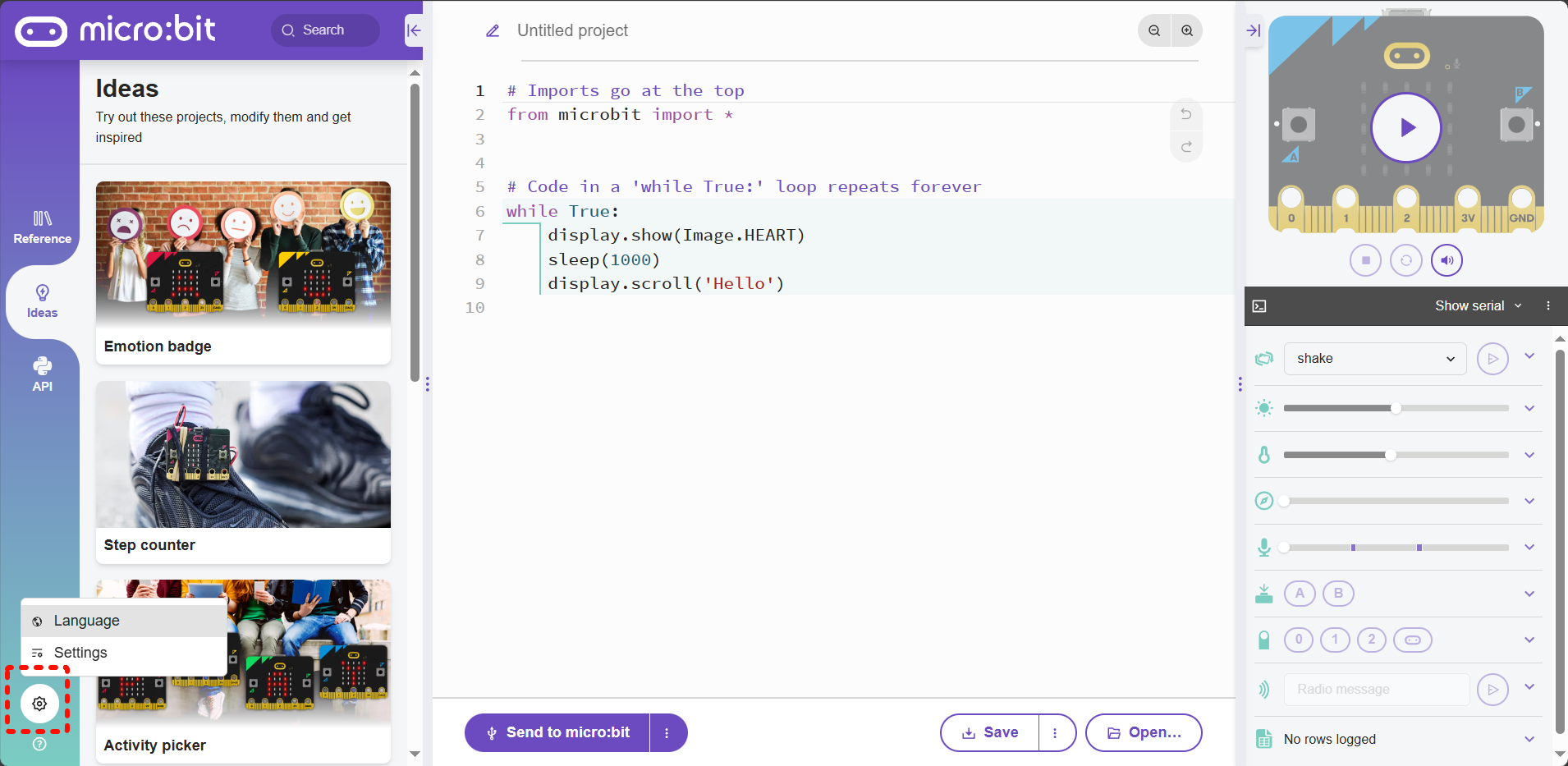

Step 1: Click the gear icon in the lower-left corner and select the Language button.

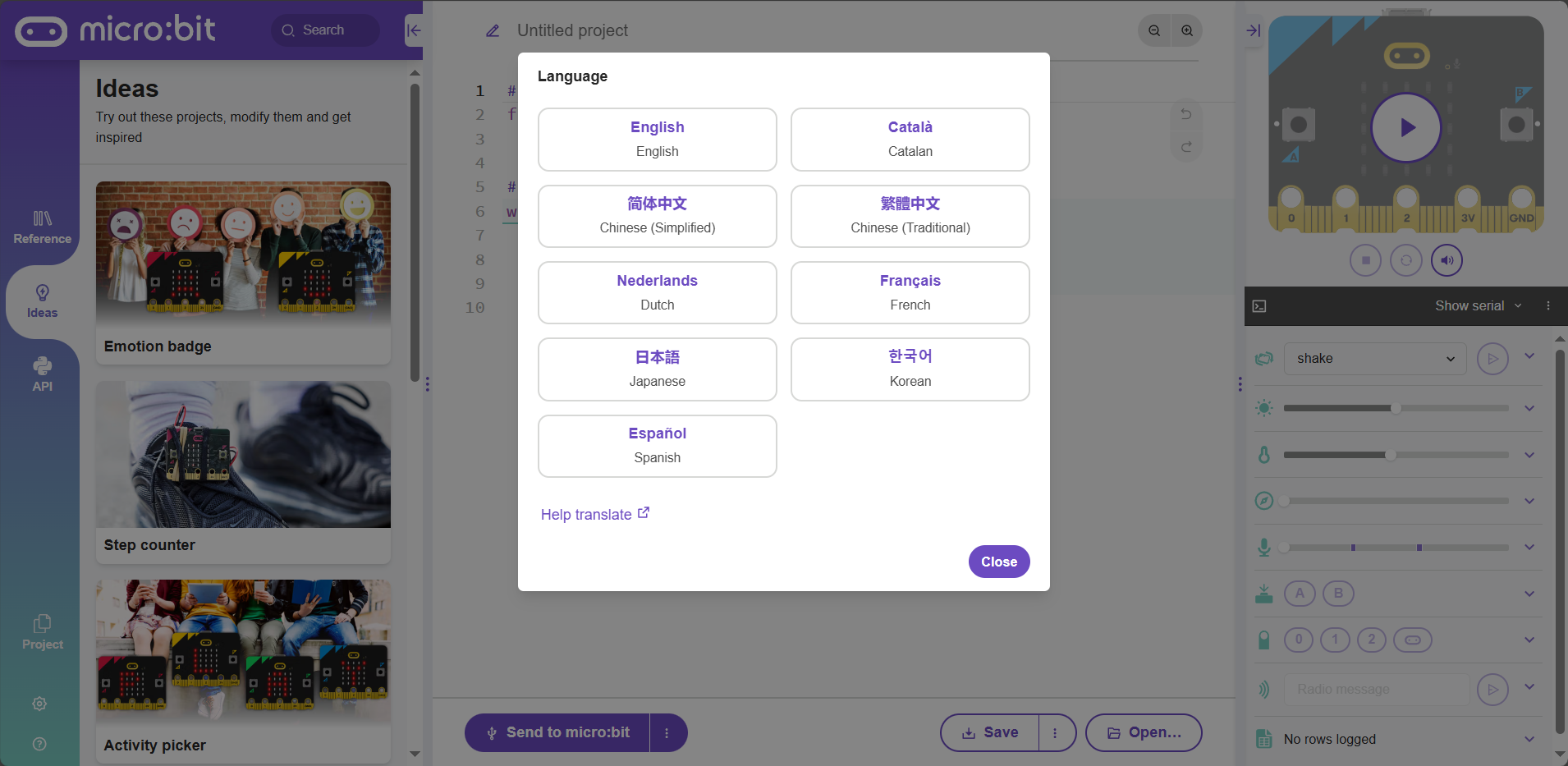

Step 2: In the pop-up window, select your desired language.


Note: It is recommended to use micro:bit V2.0 or above. Lower versions have insufficient memory and may not function properly.

Quick Start

Usage Notes:

  • Due to memory limitations, you cannot directly import all library files.

  • Only import the libraries required for your project. Remove unused libraries to optimize memory usage

Downloading Files

Visit GitHub to download the Python driver files.

For users in Mainland China, visit Gitee.

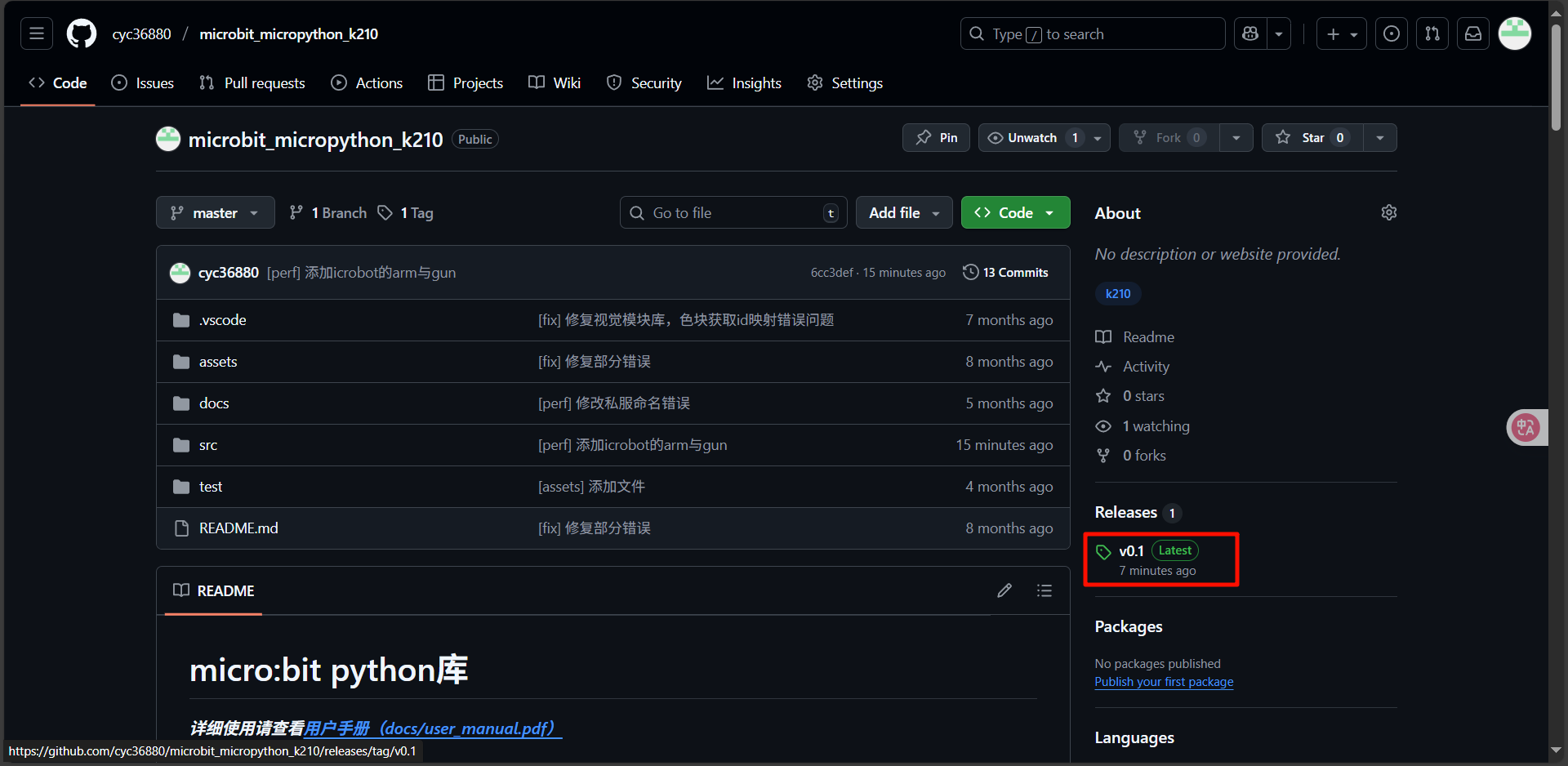

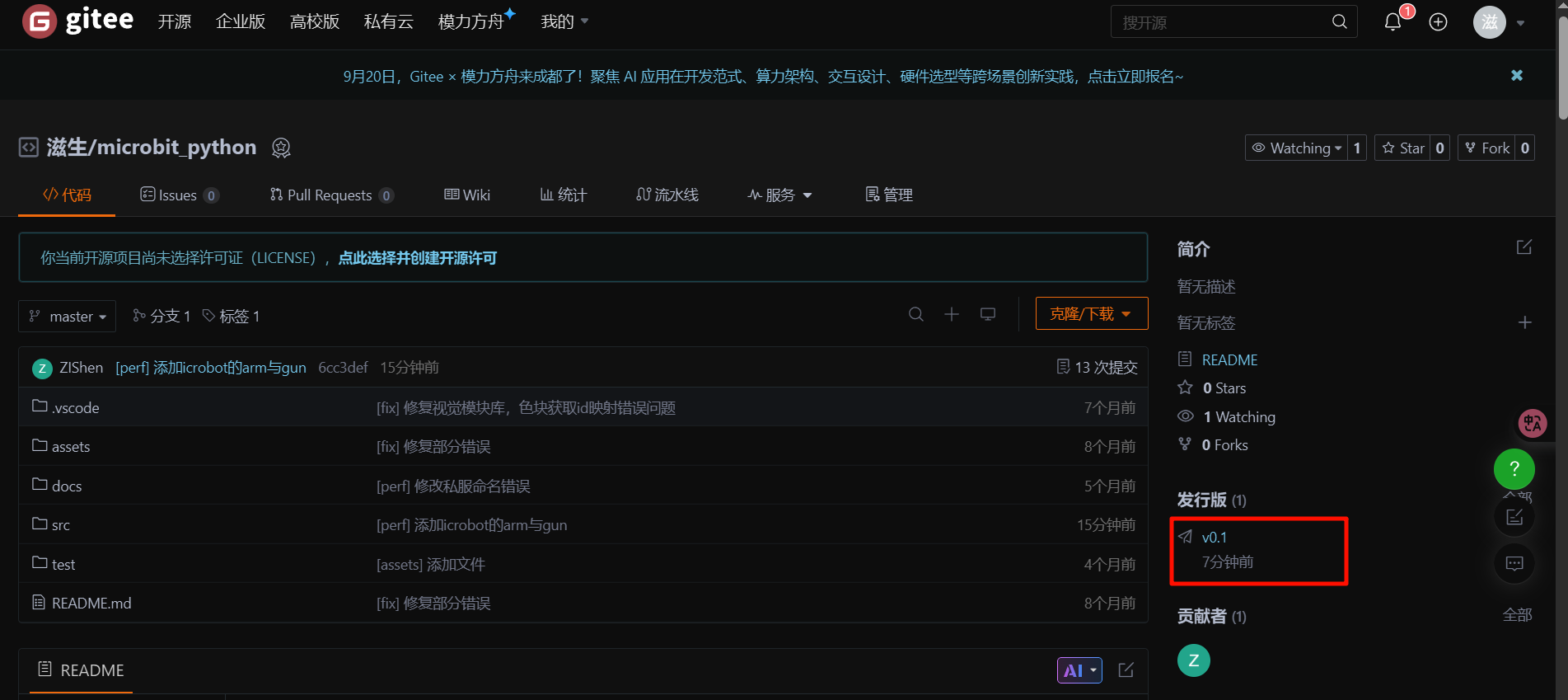

  1. Choose a hosting platform and select the release version (download the latest version if unsure).

gitee

github

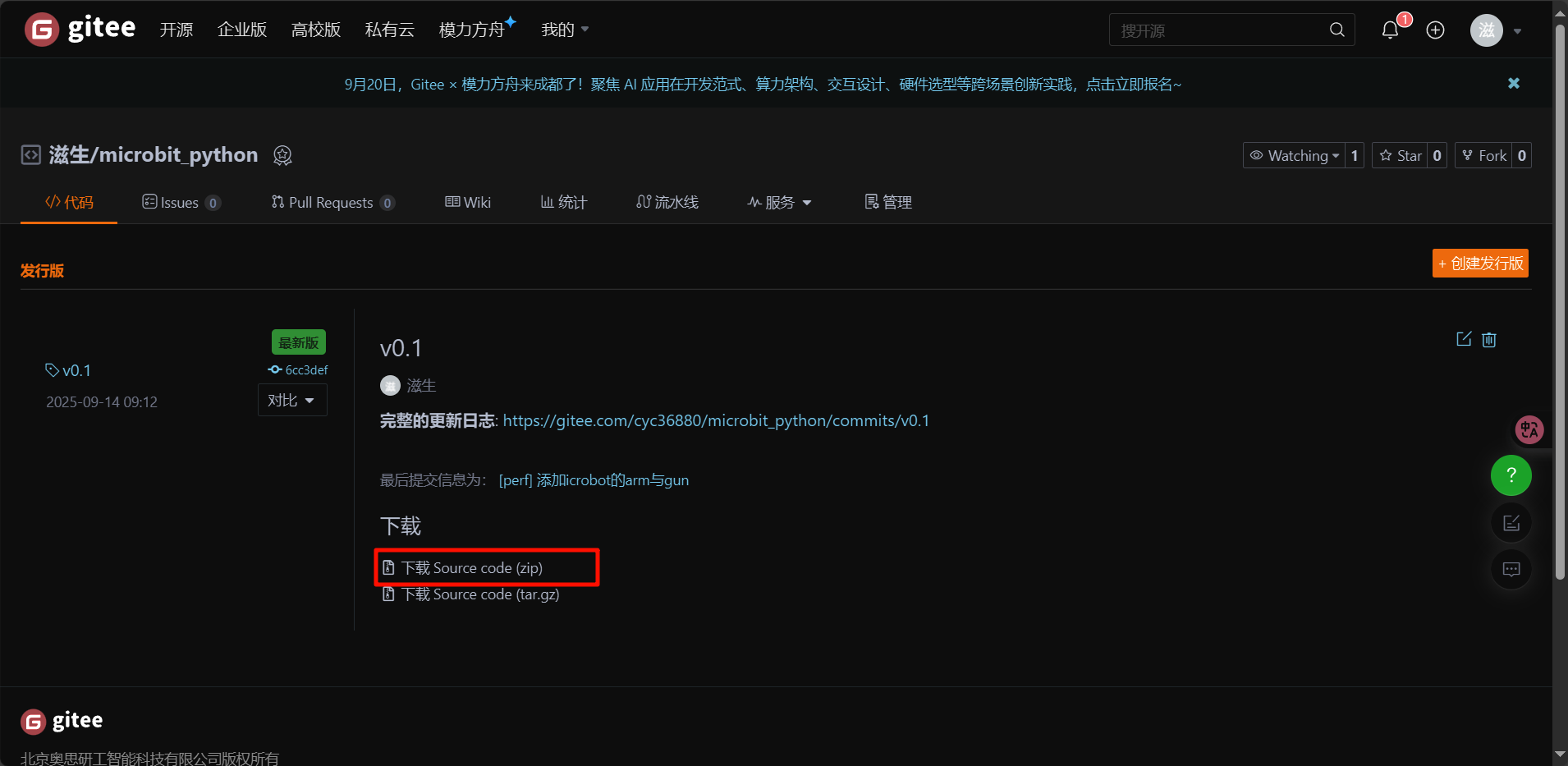

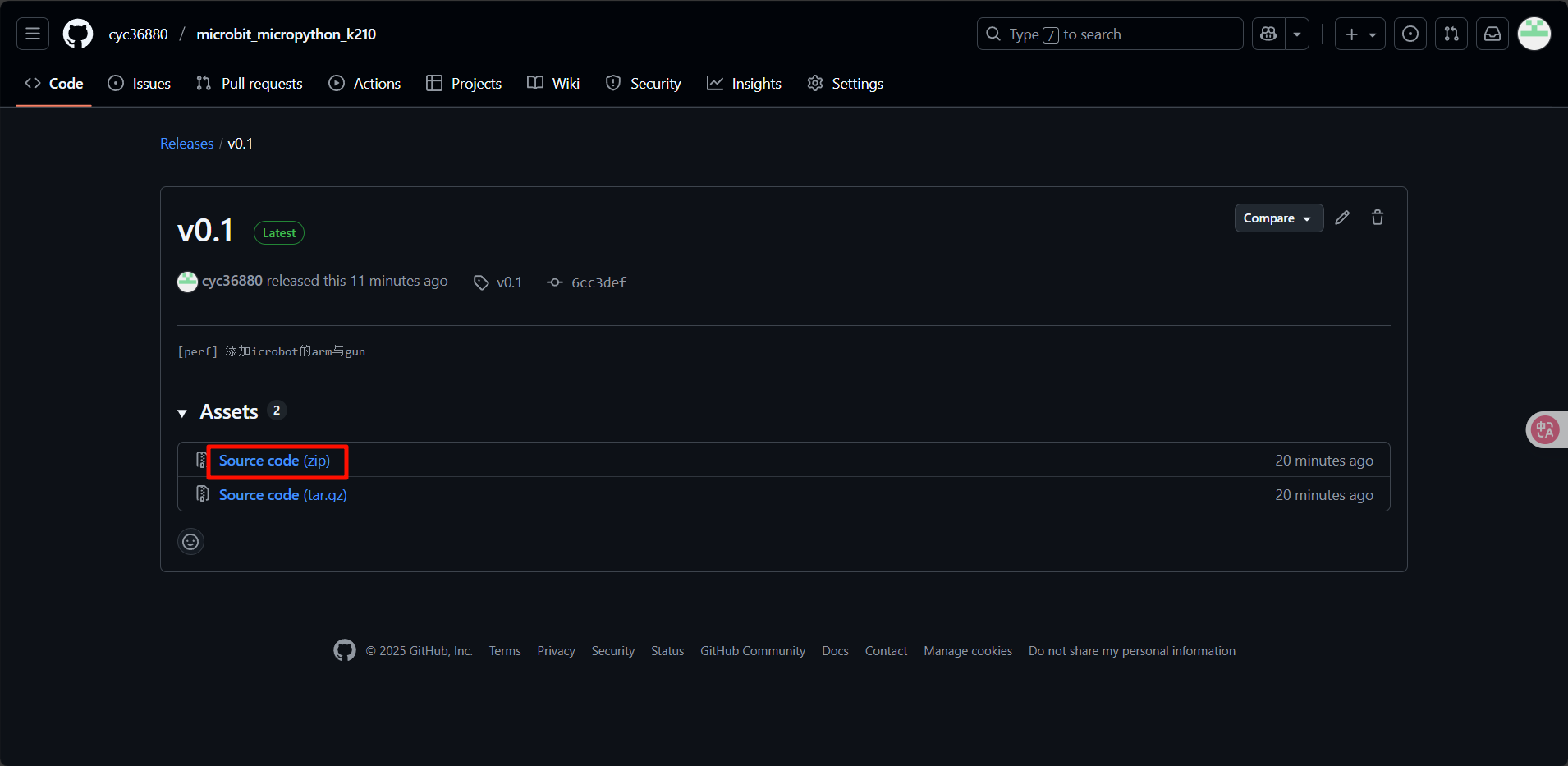

  1. Click Download ZIP and wait for the browser to start downloading.

gitee

github

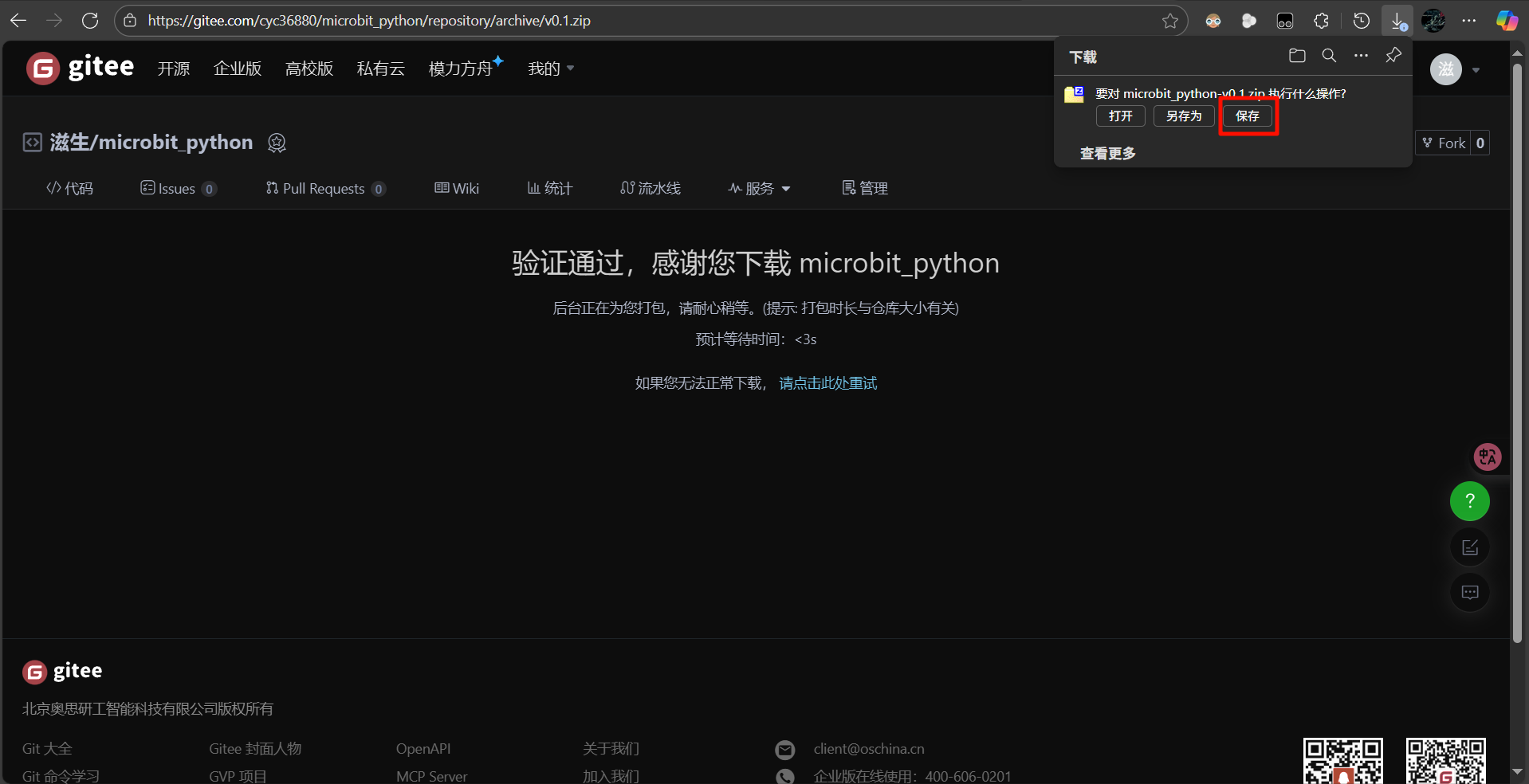

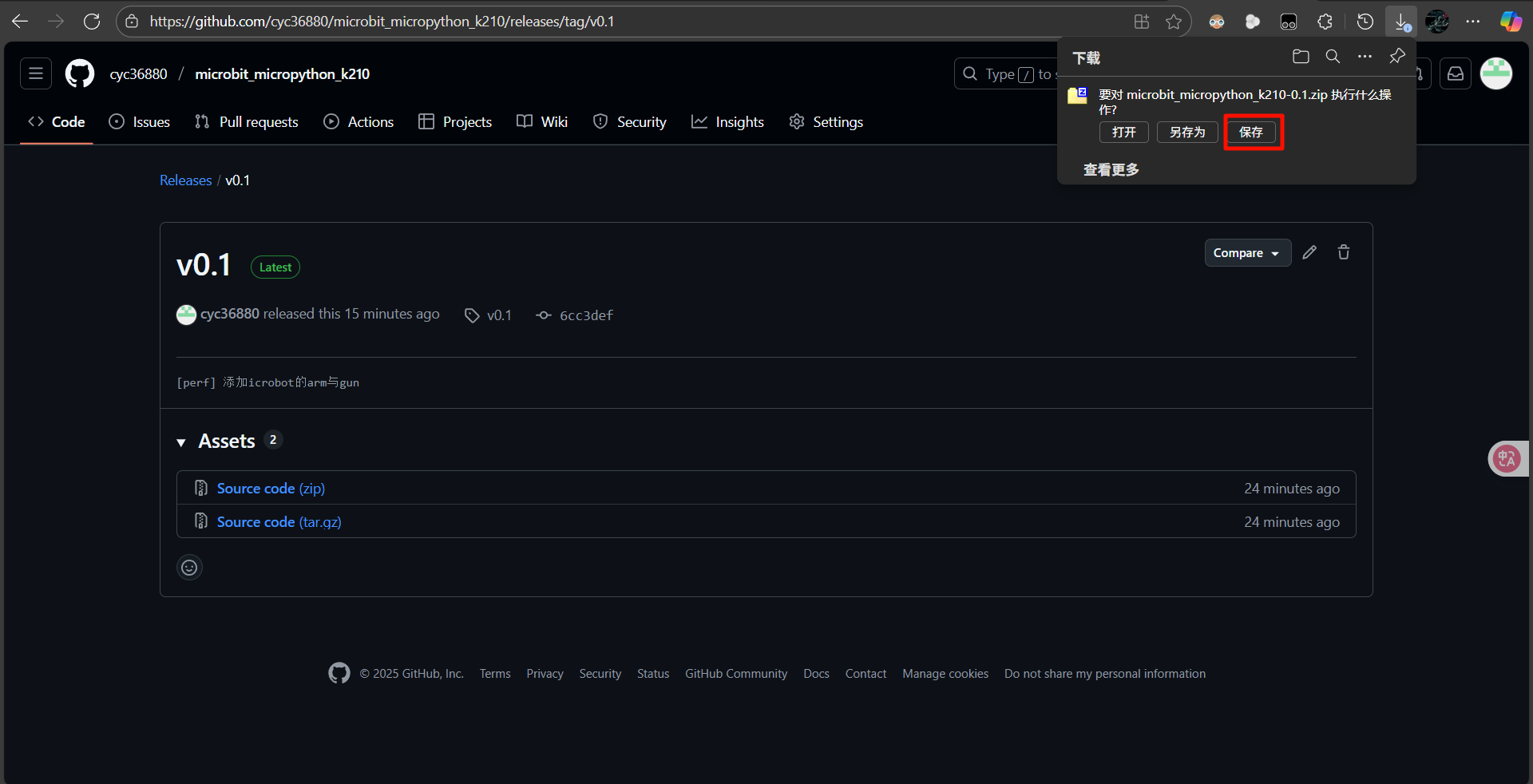

  1. Save the file to your computer.

gitee

github

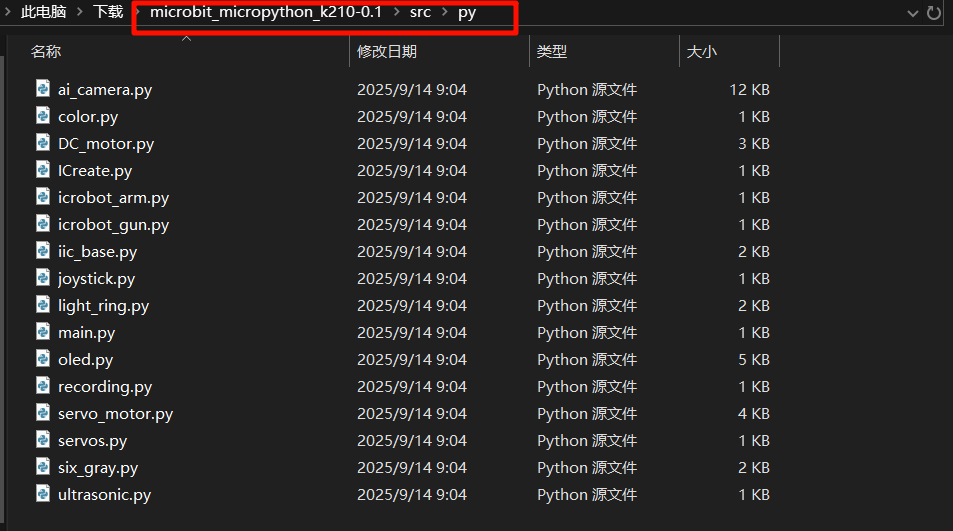

  1. Unzip the file and locate the required Python files.

When using the libraries, you should at least import the following files:

color.py、DC_motor.py、iic_base.py

These files form the foundation for other device driver libraries. Without them, the system will not function properly.

Importing Files

Single File Import

  1. Click the Open button (lower-left or lower-right).

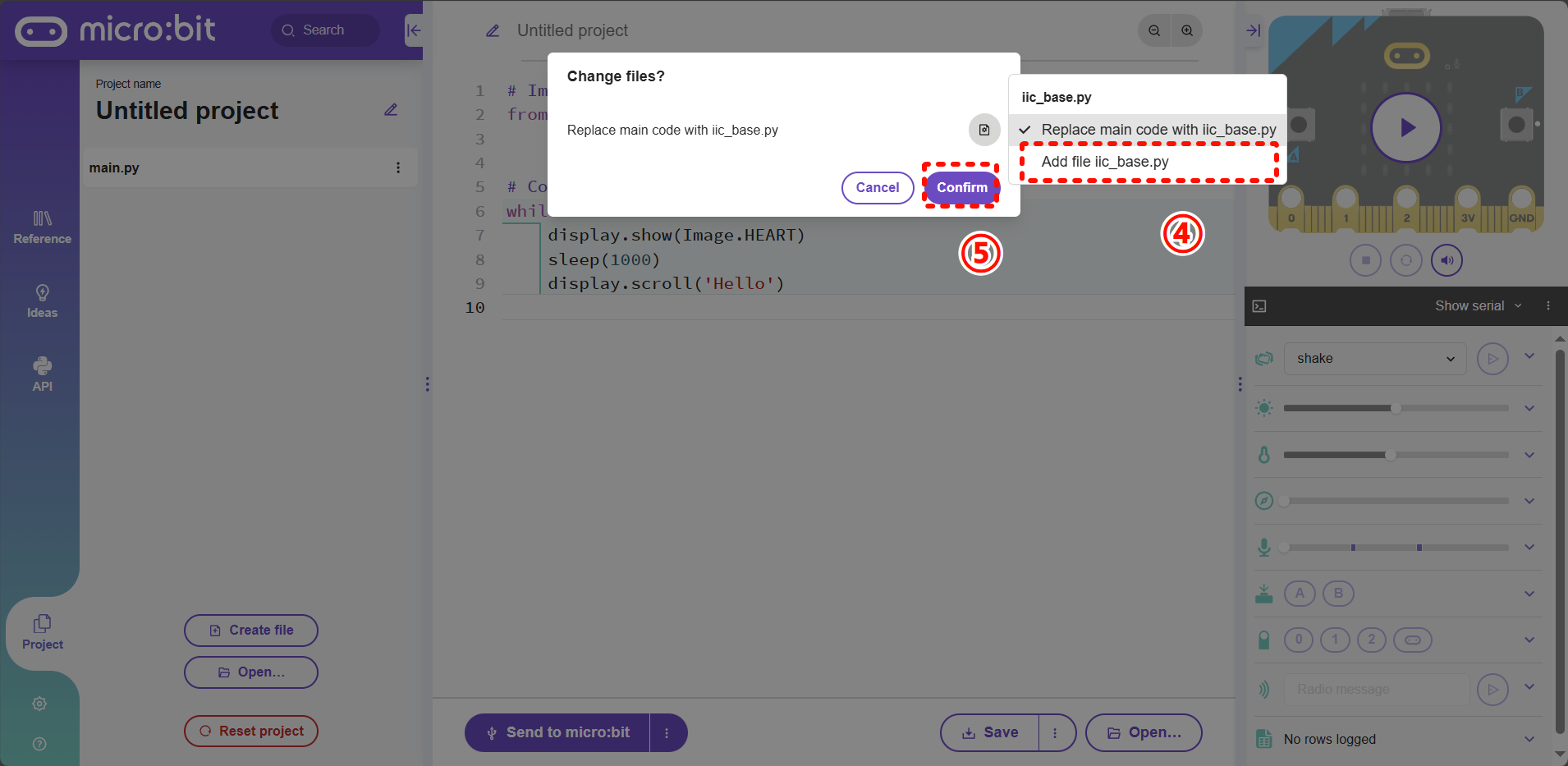

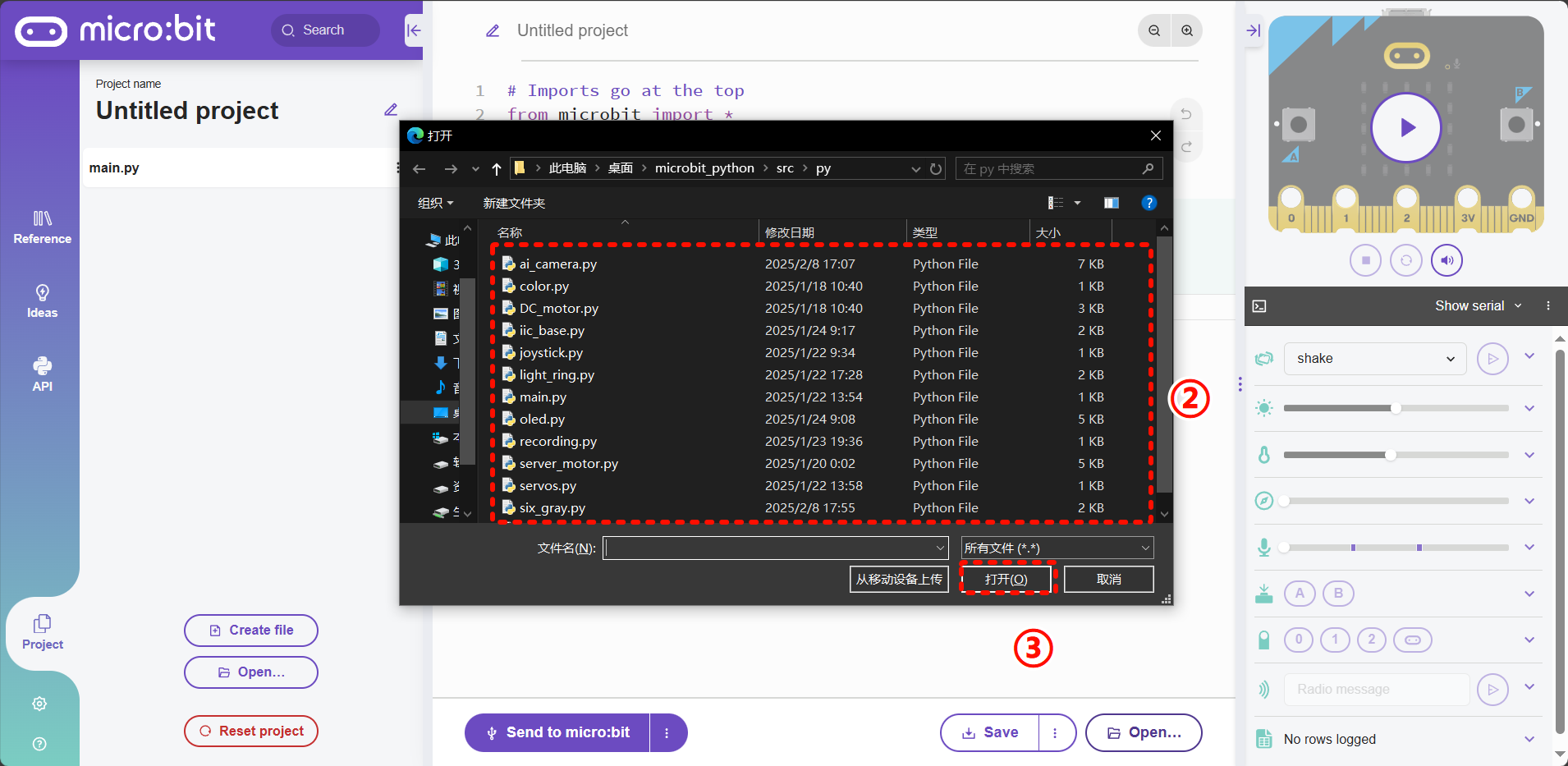

  1. Select the file you want to import and click Open.

  1. Select the file you want to import and click Open.

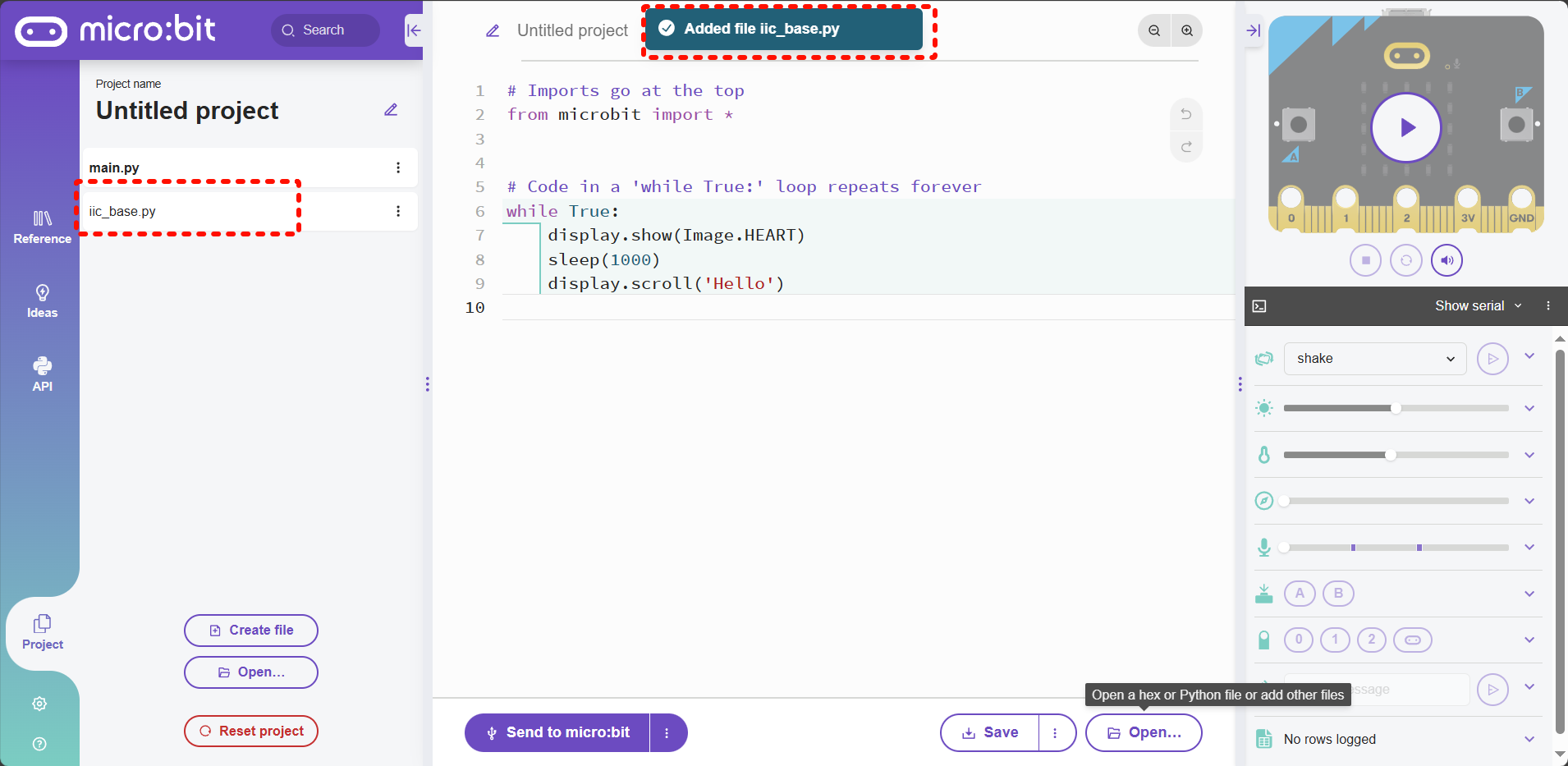

  1. A success message appears at the top, and the file is added to the project list.

Multiple File Import

The process is similar to single file import. (See demo GIF for details.)

Device Connection

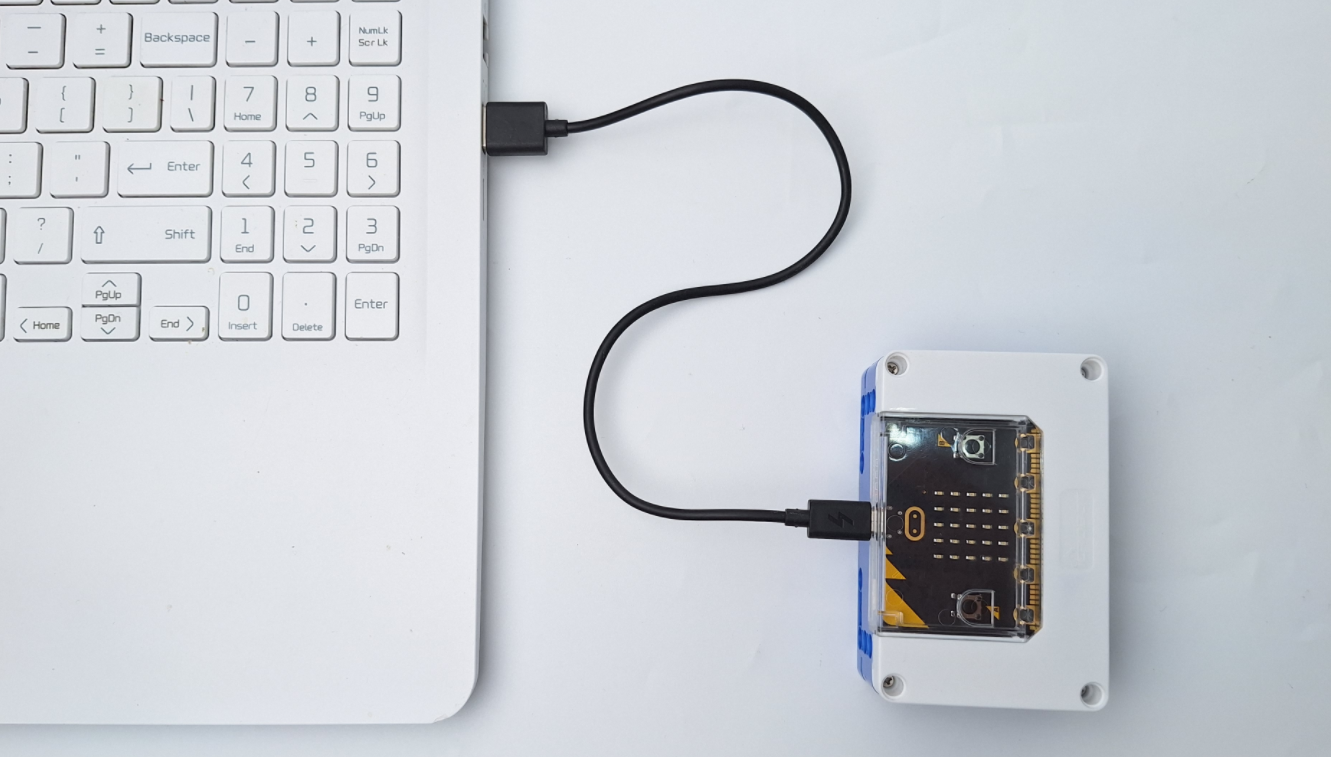

  1. Use a microUSB cable to connect the hub and computer.

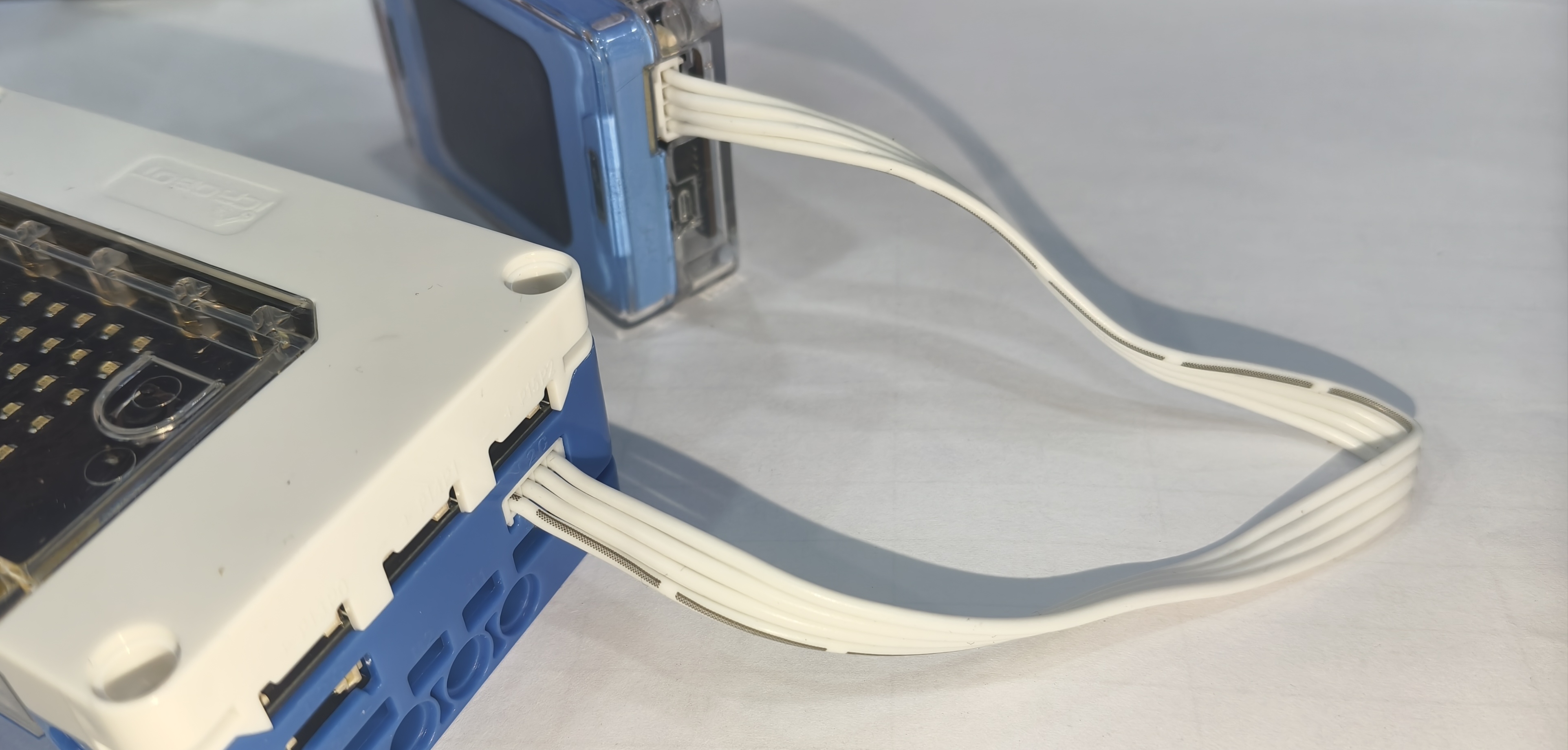

  1. Use a Grove cable to connect the micro:bit with the vision module.

Downloading Scripts

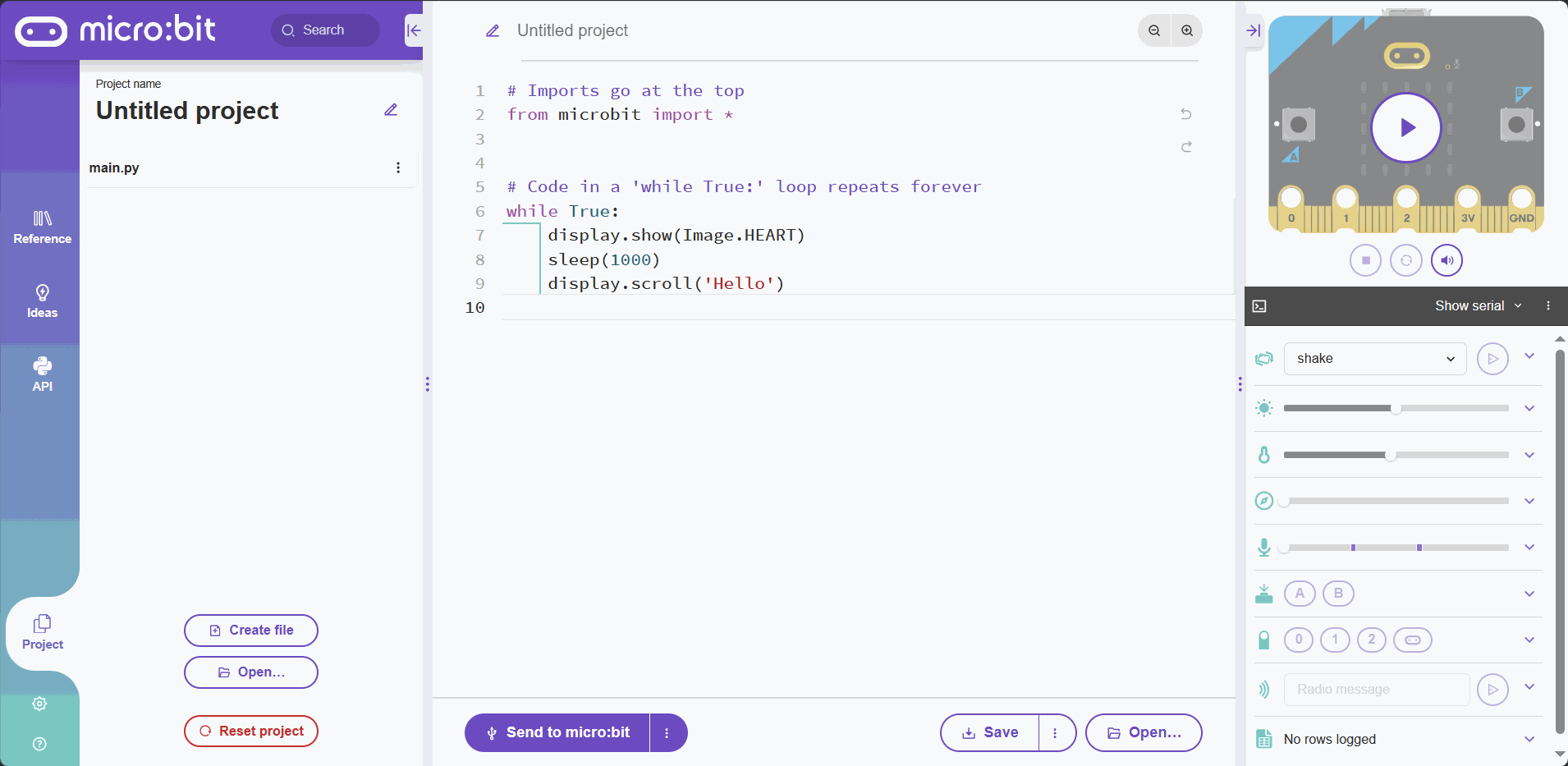

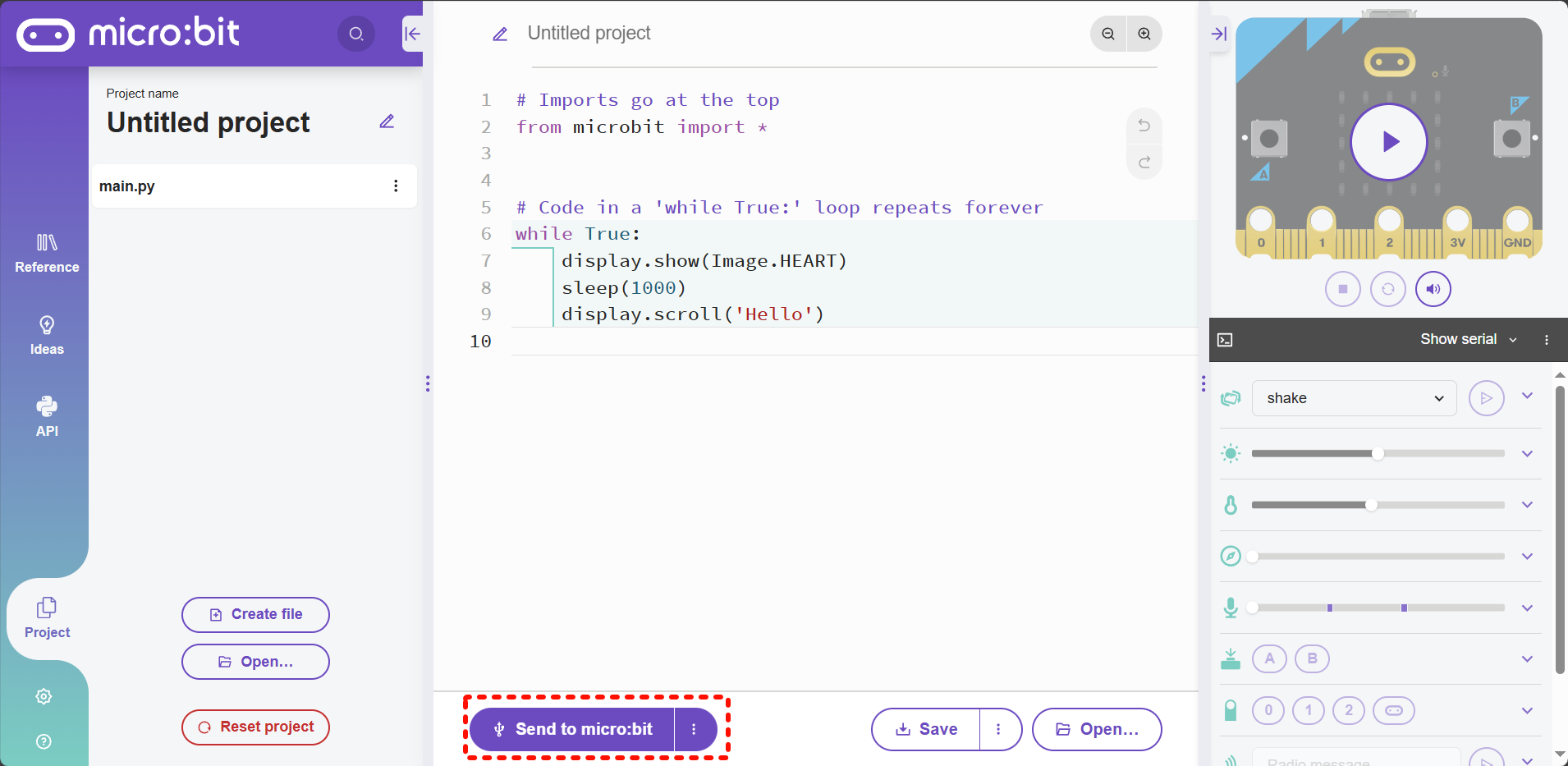

Ensure that the micro:bit is connected to your computer. Use the default starter code provided on the website, then click the highlighted button to send the code to the controller.

On the first download, firmware flashing may take longer. Later downloads will be faster.

Default program effect:

Display a heart icon.

After 1 second, scroll “Hello”.

Loop continuously.

from microbit import *

import server_motor # 导入库（文件名）

m1 = server_motor.motor(addr = server_motor.LIGHT_RED) # 创建设备对象

while True:
    m1.run(20) # 对象使用

These are examples of servo motor usage.

  • Line 1: from microbit import * imports the micro:bit library. Without this library, functions such as sleep cannot be used.

  • Line 3: import server_motor imports the server_motor library.

  • Line 5: Creates a device operation object. All subsequent operations on the corresponding device must be carried out through this object.

  • Line 8: Demonstrates the use of the object.

All device drivers follow a similar usage pattern.

Examples

Six-Way Grayscale Sensor

Follow the library import steps. In addition to the required libraries, import six_gray.py.

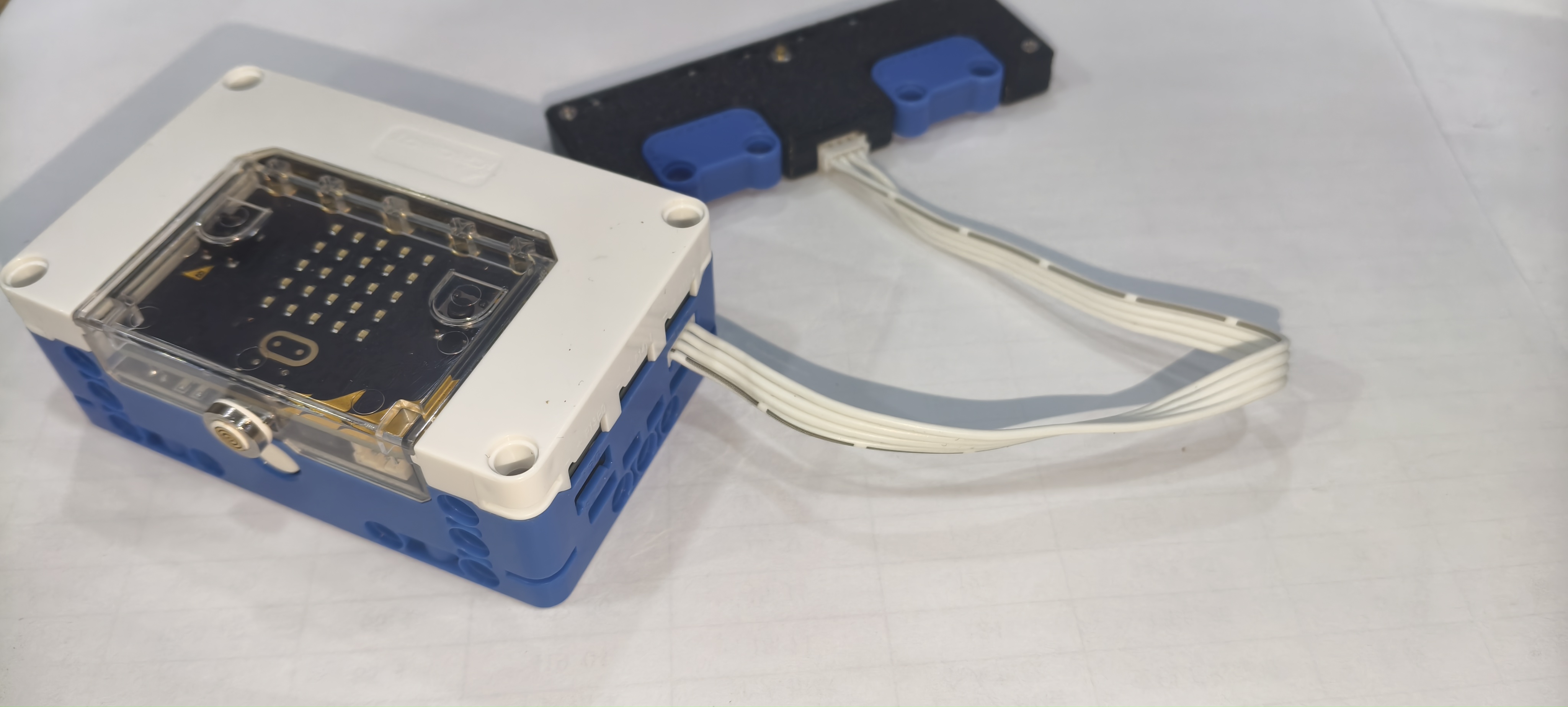

Connect the micro:bit to the six-way grayscale module using a Grove cable.

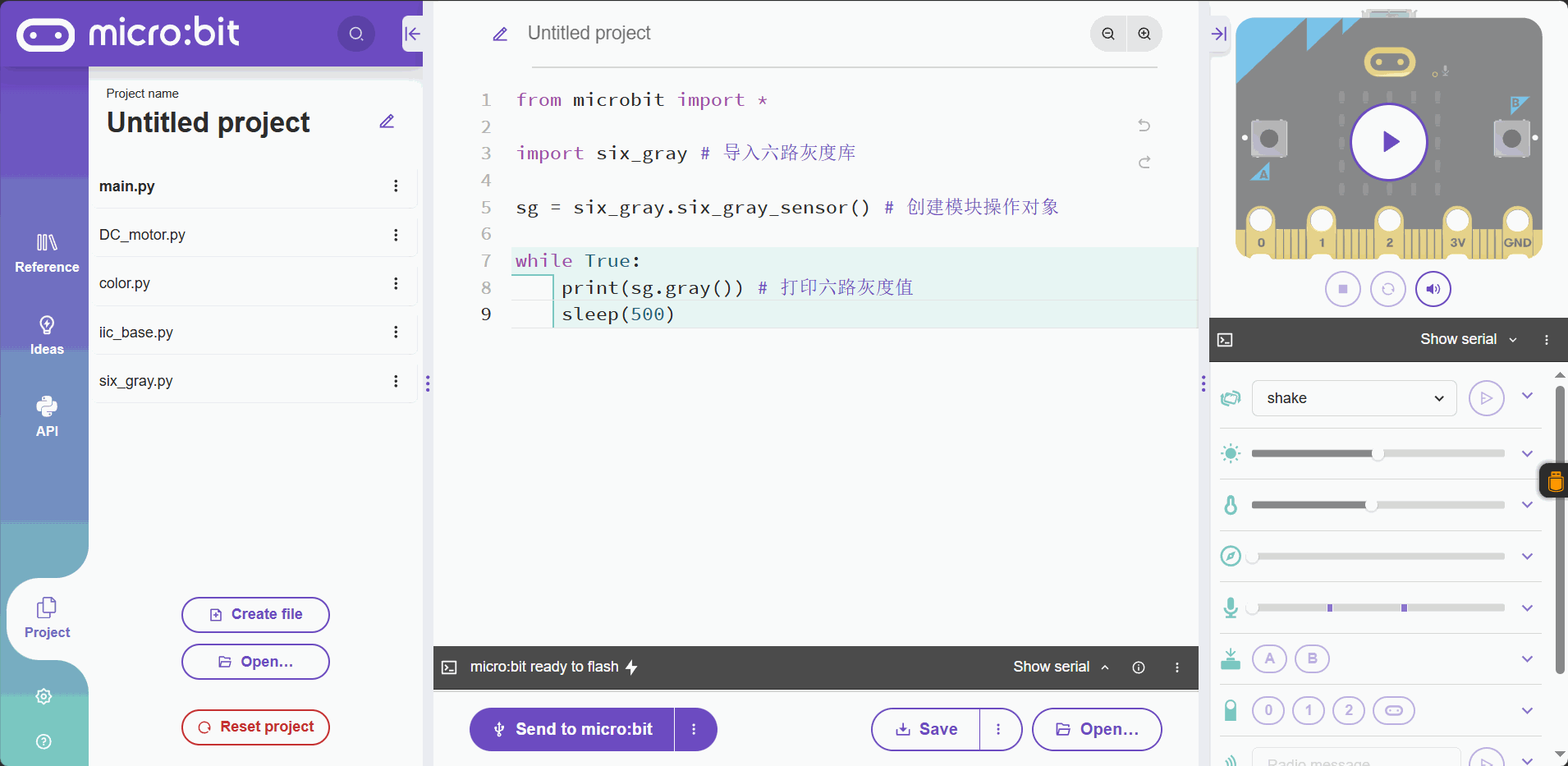

Write the following code in the code editor and write it to micro: bit to see the effect.

from microbit import *

import six_gray # 导入六路灰度库

sg = six_gray.six_gray_sensor() # 创建模块操作对象

while True:
    print(sg.gray()) # 打印六路灰度值
    sleep(500)

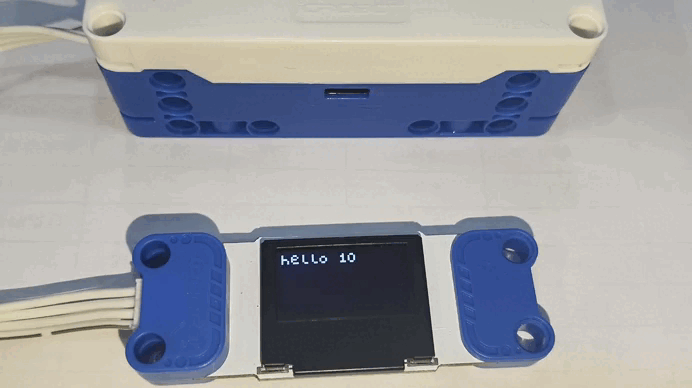

OLED & Python Libraries

Referring to the library import process, in addition to the libraries that must be imported, you also need to import oled.py libraries. The project files are shown in the figure below

from microbit import *

import oled  # 导入OLED库

display = oled.oled()  # 创建模块操作对象

count=0
while True:
    count+=1
    if count>20:
        count=0
    display.set_text(0, 0, "hello %d  " % (count)) # 显示字符串
    sleep(400)

*** For the use of other devices, please refer to the API and try it yourself**

micro:bit Python Overview:

The Python library includes multiple device drivers. With Python’s flexibility, you can create more versatile, maintainable, and widely applicable code.

Library Files Overview:

File

Function

color.py

Color definitions

ai_camera.py

AI camera library

DC_motor.py

DC motor library

iic_base.py

IIC driver library

joystick.py

Joystick library

light_ring.py

LED ring library

oled.py

OLED display library

recording.py

Recording module library

server_motor.py

Servo motor library

servors.py

General servo library

six_gray.py

Six-way grayscale library

ultrasonic.py

Ultrasonic sensor library

API Reference

For detailed API documentation of the visual recognition module in the micro:bit Python editor, please refer to the Block Guide – Vision Recognition.
